X-ray Scintillator Screen

Scintillator is a material that convert radial ray such as X-ray into the visible light. By using with a light detector such as TFT, CCD, CMOS sensors, The image can be efficiently converted to a digital image.
Mitsubishi Chemical has its own phosphor manufacturing technology and processing know-how, including the DRZ series used for medical X-ray diagnostic imaging and baggage inspection, We have commercialized excellent scintillators for digital X-ray equipment such as Short Decay and Low Afterglow Type used for high-speed line sensors for contamination inspection.

An easy to understand the scintillator[Open in a new window]

Inquiries

Characteristics

[Close]

Mitsubishi Chemical's "DRZ series" is a GOS-based scintillator product used in the indirect conversion method (a method of converting X-rays to light by irradiating the phosphor to light and reading the light as an image with a photodetector).Compared to the "CsI" also used in indirect conversion method, GOS has the merit of being able to be used for a long time because of GOS’s stable performance. Among them, our "DRZ series" realizes outstanding stability and high cost performance by developing and manufacturing our own fluorescent substances over a long period of more than half a century. Today, the DRZ series is one of the world's most widely used scintillator products, ranging from medical applications such as radiography and radiation therapy to industrial applications such as structural inspection and baggage inspection.

GOS scintillator "DRZ"

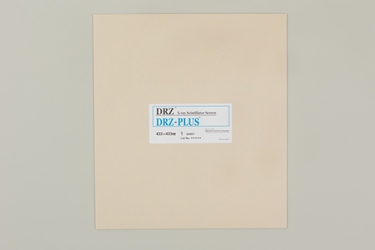

Package

Applications

[Close]

"DRZ Series"are used for folowing.

Market Application
Medical FPD General Radiography
Dental
Oncology
Veterinary
Non Destructive Testing FPD Structual Inspection (RT)
Industrial CT
Liner X-ray Imaging Baggage Inspection
Food Inspection
Contraband Screening
  • FPD(Flat Panel Detector)

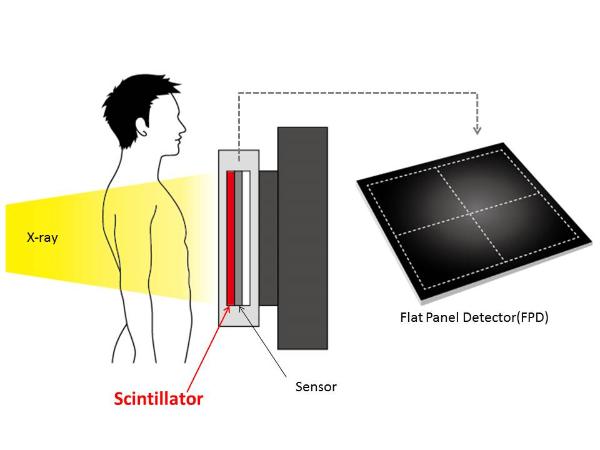

General Radiography

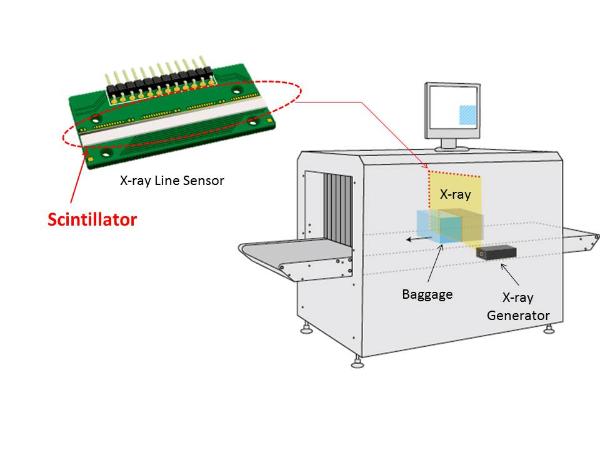

Baggage Inspection

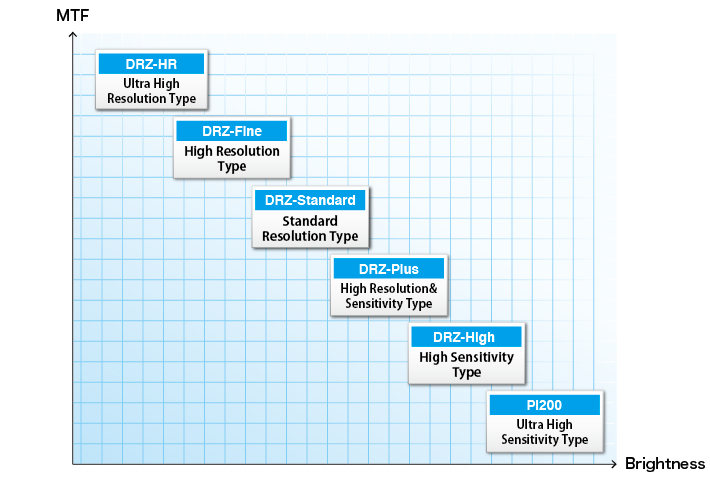

Lineup / Specifications

[Close]


HR FINE STD PLUS HIGH PI200
Construction Protective Layer(μm) 6-9
Phosphor Layer
(mg/cm2 ±10%)
25 50 68 100 145 200
Supporting Layer
(μm)
188-250
Brightness*1 Relative Brightness
(DRZ-PLUS=100%)
25% 50% 80% 100% 145% 155%
MTF*2 MTF(2 Lp/mm) 0.55 0.45 0.35 0.25 0.10 0.05
Relative MTF(%) 220% 180% 140% 100% 40% 20%
  • The above data are reference values based on our measurement method and are not guaranteed values.
    The numerical value is a reference only, there is a possibility that the value varies depending on the measuring method.

Conditions

  1. *1X-ray: 80kV, Phantom : Water 100mm(Tube side), CMOS detector
  2. *2X-ray: 80kV, Phantom : Water 100mm(Tube side), CMOS detector, MTF measurement method complies with IEC62220-1(2003)

Short Decay and Low Afterglow Type


FA1 FA3 FA4 DRZ-PLUS(Ref.)
Construction Protective Layer (μm) 6
Phosphor Layer
(mg/cm2 ±10%)
60 100 180 100
Supporting Layer (μm) 180 250
Brightness Relative Brightness (%) 40 65 80 100
Decay time Time (μs) 5 600
Afterglow (ppm@20ms) 50 500
Size (mm) Various sizes are available Tolerance ±0.5mm
Note Custom-made products products

The above data are reference values based on our measurement method and are not guaranteed values.
The numerical value is a reference only, there is a possibility that the value varies depending on the measuring method.
