X-ray Scintillator CeramicsGOS Ceramic Plate
Mitsubishi Chemical Corporation- Language
Features
- High brightness
- Short decay and Low afterglow
- Various ceramic sizes are available
- Array processing can be done by the customer
- Safe for the environment (RoHS free)
- Resistant to humidity
- For medical and security, industrial X-ray detector(CT-Scan etc.)
Applications
[Close]

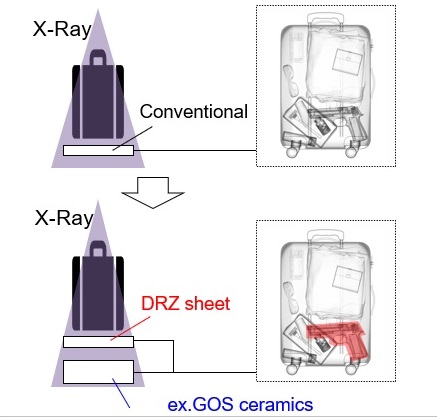

- Dual energy
-
When used as a dual sensor with DRZ sheet products, energy discrimination facilitates detection of hazardous materials.
Lineup / Specifications
[Close]
| Type | Light Output (thickness) | After Glow(ppm) | Decay time (μs) |
|
|---|---|---|---|---|
| vs DRZ-High | @20ms | @100ms | ||
| NDT | Typ. 0.85 (2.8mmt) | <250 | <100 | <10 ※Reference values |
| Typ. 0.90 (2.0mmt) | ||||
| Typ. 0.93 (1.4mmt) | ||||
| Medical | Typ. 0.90 (1.6mmt) | <35 | <20 | |
※L.O. tolerance is negotiable.
Measuring Condition
LO : 80kV,4mAs
AG : 100kV,20mAs
*These data are reference values based on our measurement method and are not guaranteed values.
These values are only a guide and may vary depending on the measurement method.
