High-Molecular weight saturated polyester resin
Nichigo-POLYESTER™
Feel free to contact us for technical inquires and ordering or to request catalogs, pricing estimates, etc.
- SPR Dept.
Water-soluble Type Nichigo-POLYESTER™
- Water-soluble Type
-
Containing no alcohols or other solvents, these are high-stability, entirely water-based polyester resins. They are highly regarded as surface modification agents for the modification of wettability in PET films and the improvement of adhesion.
Applications & Characteristics
- Film surface treatment agents
- fiber treatment agents
- steel sheet treatment agents
- coatings for recording papers

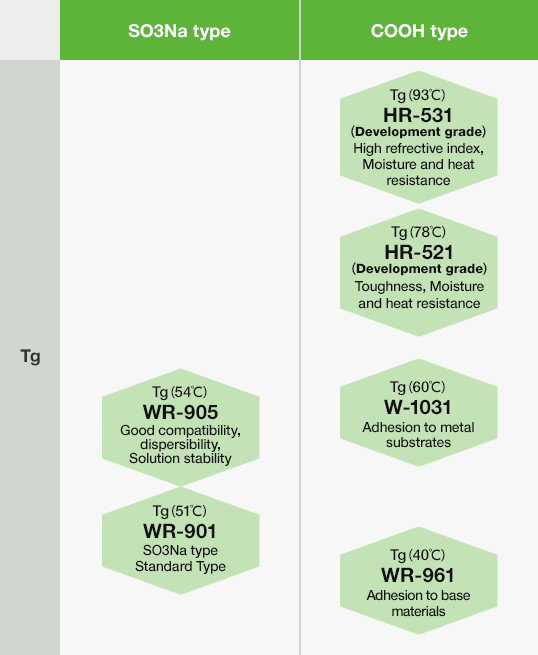

Grade
Characteristics
-
WR-901
SO3Na type. Relatively high Tg, offering excellent heat resistance and printability. Widely used as a surface treatment agent for films and as a coating for recording papers.
-
WR-905
SO3Na type. Relatively high Tg, offering excellent heat resistance and printability. Widely used as a surface treatment agent for films and as a coating for recording papers.
-
WR-961
COOH type, Medium Tg, Adhesion to base materials
-
W-1031
COOH(high acid value) type, Relatively high Tg. Mainly used as a surface treatment agent for films and as a coating for recording papers.
-
HR-521(Development grade)
COOH(low acid value) type, high Tg with high hydrophobicity. Suitable for a primer layer on PET films and other applications which requires water and heat-humidity resistance.
-
HR-531(Development grade)
COOH(low acid value) type. High reflactive index and high hydrophobicity.
Technical data
| Grade | Form | Solid Content (％) |
Type | Tg (℃) |
Hydroxyl Value (mgKOH/g) |
Acid Value (mgKOH/g) |
Refractive Index (％) |
Characteristics |
|---|---|---|---|---|---|---|---|---|
| WR-901 | Aqueous solution | 20 | SO3Na | 51 | 4～8 | <4 | 1.570 | SO3Na type Standard Type Printability |
| WR-905 | Aqueous solution | 20 | SO3Na | 54 | 4～8 | <4 | 1.554 | Good compatibility Hydrophilicity Solution stability |
| WR-961 | Aqueous solution | 30 | COOH | 40 | 14～24 | 60～70 | 1.549 | Adhesion to various substrates |
| W-1031 | Aqueous solution | 30 | COOH | 60 | <5 | 70～90 | 1.559 | High acid value Adhesion to metal substrates |
| HR-521 (Development article) |
Aqueous solution (n-butylcellosolve 9wt%) |
15 | COOH | 78 | <3 | 20 | 1.593 | Toughness, Moisture and heat resistance |
| HR-531 (Development article) |
Aqueous solution (n-butylcellosolve 9wt%) |
15 | COOH | 93 | 5～10 | 20 | 1.613 | High refractive index, Moisture and heat resistance |
