Pressure Sensitive Adhesives -Acrylic copolymer COPONYL™
Feel free to contact us for technical inquires and ordering or to request catalogs, pricing estimates, etc.
- Coating Dept.
Double-sided Tapes for Signs and Display Films COPONYL™
- Double-sided Tapes for Signs and Display Films
-
It has wide range of types from strong to weak adhesion, addition of various characteristics such as high transparency, good plasticizer resistance and excellent adhesion to curved surfaces.

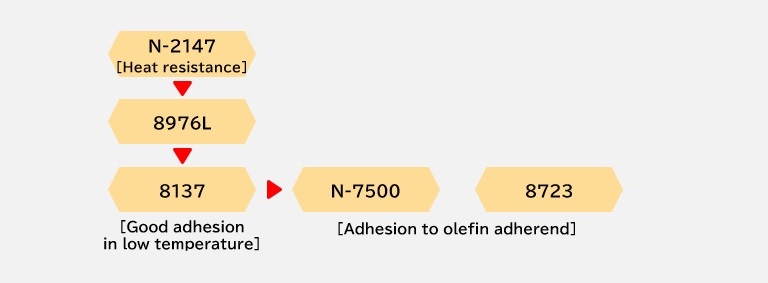

For Films and Labels
Grade
Technical data
We offer a wide selection of pressure sensitive adhesives for labels, including labels that have high transparency and high punching processability, and labels that provide excellent adhesion to rounded surfaces and good adhesion at low temperatures
| Grade | Resin Properties | Adhesion Properties | Characteristics | |||||||
| Resin Properties (%) |
Viscosity(mPa･s/25℃) | Solvent | Curing Agent | Adhesion (N/25mm) |
Holding Power | Ball Tack(no.) | ||||
| Type | Amount | 40℃ | 80℃ | |||||||
| N-7500 | 45.0±1.5 | 3000±1000 | Ethyl acetate / Toluene |
L-55E | 0.8 | 14.7 | ◎ | ◎ | 6 | Labels for flozen foods |
| 8723 | 40.0±1.5 | 4000±1000 | Ethyl acetate / Toluene |
L-55E | 1.5 | 13.0 | ○ | △ | 6 | Adhesion to olefin substrates< |
| 8976L | 40.0±1.5 | 4000±500 | Ethyl acetate / Toluene |
L-55E | 1.0 | 11.0 | ◎ | ○ | 9 | Heat resistant |
| 8137 | 40.0±1.5 | 3000±500 | Ethyl acetate / Toluene |
L-55E | 2.0 | 10.0 | ○ | △ | 10 | Low temperature adhesion |
| N-2147 | 35.0±1.5 | 7000±1000 | Ethyl acetate / Toluene |
L-55E | 1.0 | 8.5 | ◎ | ◎ | 3> | Heat resistant, Dimensional stability |

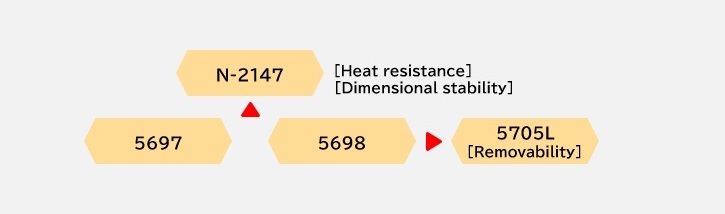

For Sign Display
Grade
Technical data
We offer adhesives that have good plasticizer resistance, are dimensionally stable, and ensure excellent reworkability.
| Grade | Resin Properties | Adhesion Properties | Characteristics | |||||||
| Resin Properties (%) |
Viscosity(mPa･s/25℃) | Solvent | Curing Agent | Adhesion (N/25mm) |
Holding Power | Ball Tack(no.) | ||||
| Type | Amount | 40℃ | 80℃ | |||||||
| 5698 | 38.0±1.5 | 2500±500 | Ethyl acetate / Toluene |
L-55E | 2.0 | 9.5 | ◎ | ◎ | 3> | Standard type (soft) |
| 5697 | 40.0±1.5 | 5500±750 | Ethyl acetate / Toluene |
L-55E | 2.0 | 8.5 | ◎ | ◎ | 3 | Standard type (hard) |
| N-2147 | 35.0±1.5 | 7000±1000 | Ethyl acetate / Toluene |
L-55E | 1.0 | 8.5 | ◎ | ◎ | 3> | Heat resistant, Dimensional stability, For window films |
| 5705L | 35.0±1.5 | 3000±500 | Ethyl acetate / Toluene |
L-55E | 2.0 | 7.5 | ◎ | ◎ | 3 | Hard type, Removability |

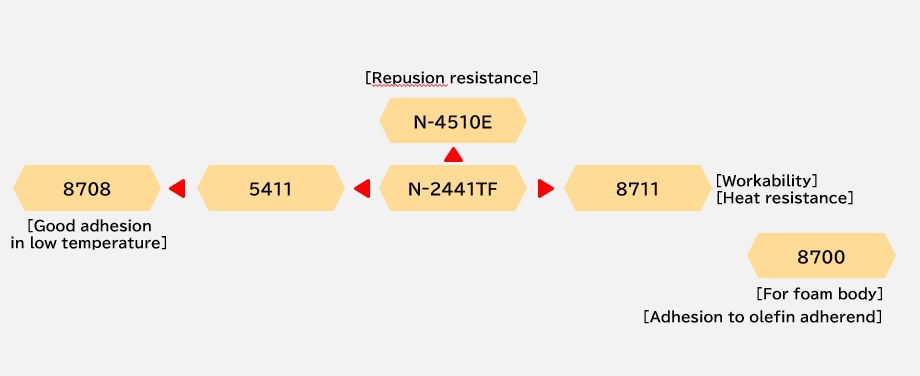

For Double-sided Tapes
Grade
Technical data
Our pressure sensitive adhesives for double-sided tapes ensure superior adhesion to low-polarity adherends, adhesion to rounded surfaces, and proper slitting.
| Grade | Resin Properties | Adhesion Properties | Characteristics | |||||||
| Resin Properties (%) |
Viscosity(mPa･s/25℃) | Solvent | Curing Agent | Adhesion (N/25mm) |
Holding Power | Ball Tack(no.) | ||||
| Type | Amount | 40℃ | 80℃ | |||||||
| N-4510E | 52.5±1.5 | 10000±2000 | Ethyl acetate | L-55E | 1.8 | 14.5 | ◎ | ○ | 3 | Adhesion to olefin, Repulsion resistant |
| 8708 | 40.0±1.5 | 2300±500 | Ethyl acetate / Toluene |
L-55E | 1.5 | 13.5 | ○ | △ | 6 | Low temperature adhesion |
| N-2441TF | 45.0±1.5 | 8000±1000 | Ethyl acetate / Toluene |
L-55E | 1.0 | 13.0 | ◎ | ○ | 3 | Repulsion resistant, Excellent holding power with low load |
| 5411 | 52.0±1.5 | 7500±500 | Ethyl acetate / Toluene |
L-55E | 2.0 | 13.0 | ◎ | ○ | 9 | Permanent adhesion, Suitable for impasto processing |
| 8700 | 45.0±1.5 | 5000±700 | Ethyl acetate / Toluene |
L-55E | 1.0 | 12.0 | ◎ | ○ | 3 | For foam body substrate, adhesion to olefin adherend, Short aging time |
| 8711 | 45.0±1.5 | 5000±1000 | Ethyl acetate / Toluene |
L-55E | 1.0 | 10.0 | ◎ | ◎ | 3> | Good workability, Heat resistant |
